Efficient production of n = 2 Positronium in S states

We routinely excite Positronium (Ps) into its first excited state (n = 2) via 1-photon resonant excitation [NJP. 17 043059], and even though most of the time this is an intermediate step for subsequent excitation to Rydberg (high n) states [PRL. 114, 173001], there is plenty of interesting physics to be explored in n = 2 alone, as we discussed in one of our recent studies [PRL. 115, 183401 and  PRA. 93, 012506].

In this study we showed that the polarisation of the excitation laser, as well as the electric field that the atoms are subjected to, have a drastic effect on the effective lifetime of the excited states and when Ps annihilates.

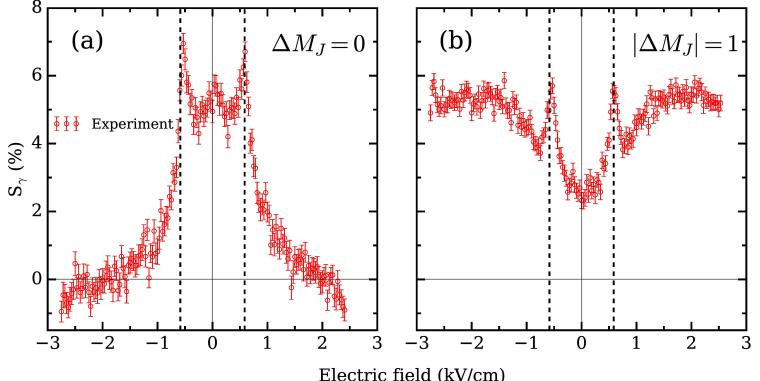

Above you can see the data for two laser polarisations, showing the Signal parameter S(%) as a function of electric field, this is essentially a measure of how likely Ps is to annihilate compared to ground-state (n = 1) Ps, that is to say, if S(%) is positive then n = 2 Ps in such configuration annihilates with shorter lifetimes than n = 1 Ps (142 ns), whereas if S(%) is negative then n = 2 Ps will annihilate with longer lifetimes than 142 ns, These longer lifetimes are present in the parallel polarisation (pannel a).

Using this polarisation, and applying a large negative or positive electric field (around 3 kV/cm), provides such long lifetimes due to the excited state containing a significant amount of triplet S character (2S), a substate of = 2 with spin = 1 and \ell = 0. If the Ps atoms are then allowed to travel (adiabatically) to a region of zero nominal electric field (our experimental set-up [RSI. 86, 103101] guarantees such transport), then they will be made up almost entirely of this long-lived triplet S character, and will thus annihilate at much later times than the background n = 1 atoms. These delayed annihilations can be easily detected by simply looking at the gamma-ray spectrum recorded by our LYSO detectors [NIMA. 828, 163] when the laser is on resonance (“Signal”), and subtracting it from the spectrum when the laser is off resonance (“Background”).

The figure above shows such spectra taken with the parallel laser polarisation, at a field where there should be minimal 2S Production (a), and a field where triplet S character is maximised (b).   It is obvious that on the second case, there are far more annihilations at later times, indicated by the positive values of the data on times up to 800 ns. This is clear evidence that we have efficiently produced = 2 triplet S states of Ps using single-photon excitation. Previous studies of 2S Ps produced such states either by collisional methods [PRL34, 1541], which is much more inefficient than single-photon excitation,  or by two-photon excitation, which is also more inefficient, requires much more laser power and is limited by photo-ionisation [PRL. 52, 1689].

This observation is the initial step before we begin a new set of experiments where we  will attempt to measure the = 2 hyperfine structure of Ps using microwaves!
